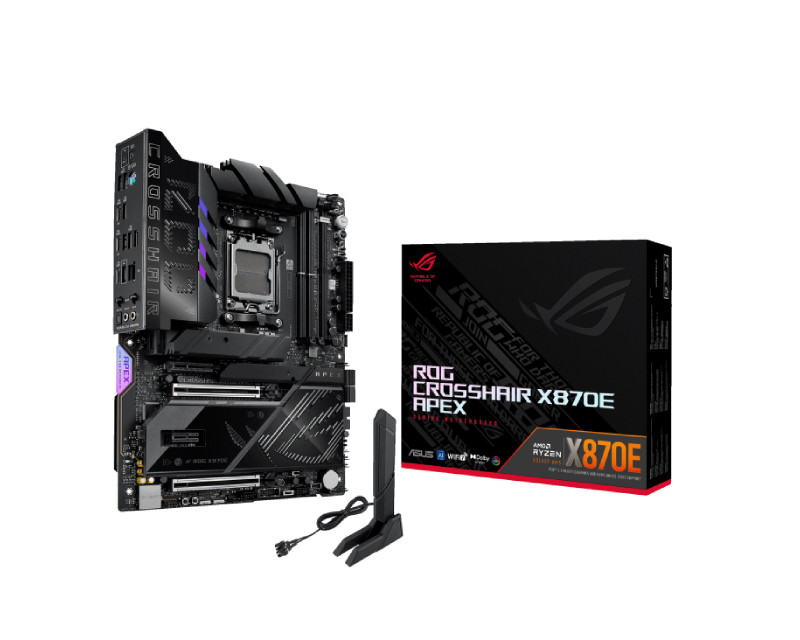

ASUS - ROG CROSSHAIR X870E APEX matična ploča
Karakteristike - ROG CROSSHAIR X870E APEX matična ploča
| Brend | |
|---|---|
| Brend | ASUS |
| Mreža | |
| Bluetooth verzija | 5.4 |
| Žična mreža (LAN) | 1x Realtek 5Gb Ethernet |
| Model | Realtek |
| Bluetooth | Da |
| Wi-Fi standard | 2.4/5/6GHz frequency band, IEEE 802.11be, 2x2 Wi-Fi 7 (802.11be) |
| Wi-Fi | Da |
| Memorija | |
| Tip memorije | DDR5 |
| Maksimalna ukupna memorija | 128GB |
| Podržane memorije | Podržava DDR5 memorije do 9.600+MT/s (O.C.) |
| Ostale osobine | Podrška za non-ECC UDIMM memory, Podrška za ECC UDIMM memory, Dual Channel, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP), NitroPath DRAM Technology |
| Memorijski slotovi | 2x DDR5 |
| Fizičke karakteristike | |
| Dimenzije | 305mm x 244mm |
| Format | ATX |
| Pakovanje | 1 x ASUS WiFi Q-Antenna, 1 x ROG DIMM.2 with heatsink, 1 x M.2 pad for ROG DIMM.2, 2 x M.2 screw package for ROG DIMM.2, 1 x ROG Memory Fan Kit, 1 x Q-connector, 3 x M.2 Q-Slide package, 3 x M.2 rubber package, 1 x ROG stickers, 1 x ROG Bottle Opener, 1 x USB drive with utilities and drivers, 1 x ASUS Wi-Fi antena, 4 x SATA 6Gb/s kabl |
| Ostale karakteristike | |
| Podržane tehnologije | AURA Creator, DIGI+VRM, SafeSlot, Q-DIMM, VRM heatsink design, M.2 Q-Latch, SafeDIMM, ASUS UEFI BIOS EZ Mode, ASUS CrashFree BIOS 3, Q-LED (CPU [red], ProCool II, Aura Sync RGB, UEFI Bios, ProCool II, Fan Xpert 4, GameFirst, Q-Connector, MyHotkey, Q-Dashboard, Extreme Engine Digi+, ROG CPU-Z, AI Cooling II, CPU Socket lever protector, AI Overclocking, AI Advisor, M.2 heatsink, BIOS FlashBack button, AI Advisor, PCIe Slot Q-Release Slim, M.2 Q-Release, Q-Code, M.2 Q-Slide, FlexKey, Metal backplate, Dolby Atmos, AURA Sync, M.2 heatsink, USB Wattage Watcher, TurboV Core, Extreme OC Kit, M.2 heatsink backplate, Pre-mounted I/O shield, ASUS EZ Flash, AIDA64 Extreme (1 year full version) |
| Priključci na zadnjem panelu | |
| PS/2 | 1 (tastatura ili miš) |
| RJ-45 (LAN) | 1 |
| Audio | 1x S/PDIF optički, 2x Gold-plated audio jacks |
| Ostali priključci | BIOS Flashback taster, 1x Clear CMOS dugme, 1 x Wi-Fi Module, 1x Realtek 5Gb Ethernet port, Clear CMOS button(s) |
| DisplayPort priključci | Da preko USB-C |
| Ukupno USB priključaka | 10 |
| Ukupno USB-C priključaka | 3 |
| USB-A priključci | 2x USB 5Gbps (3.2 Gen 1), 5x USB 10Gbps (3.2 Gen 2) |
| USB-C priključci | 1x USB 10Gbps (3.2 Gen 2), 2x USB 40Gbps (USB 4 v1.0) |
| Unutrašnji priključci | |
| Audio | 1x Front panel audio |
| Ostali priključci | 4 x SATA 6Gb/s, 1 x 4-pin AIO Pump header, 1 x 4-pin CPU OPT Fan header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 1 x Thermal Sensor header, 2 x 4-pin Chassis Fan headers, 1 x Start button, 1 x FlexKey button, ReTry taster, 1 x W_PUMP+ header, 3 x M.2 slot (Key M), 1x Alteration PCIe Mode Switch, 3x Addressable Gen 2 headers, 1x LN2 Mode jumper, Safe Boot taster, Slow mode prekidač, BIOS prekidač, 1 x PAUSE Switch, 2 x RSVD Switch, 1 x 80 Light Bar jumper, 2 x BCLK button, 1 x 4-pin Extra Flow Fan header, 2 x 4-pin Full Speed Fan headers, 12x ProbeIt Measurement Points, 1 x RSVD4 header, 3 x Addressable Gen 2 headers, 5 x M.2, 1 x SlimSAS connector |
| Napomena | Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu |
| Naponski priključci | 1 x 24 pin Main Power connector, 2x 8 pin ATX 12V Power Connector, 1x 8-pin ATX PCIe power connector, 2x 8-pin +12V CPU Power connectors, 1x 8-pin PCIe power connector |
| USB-A | 2 x podrška za 2 USB 2.0 porta, 2 x podrška za 2 USB 5Gbps porta, 2 x podrška za 4 USB 2.0 porta, 2 x podrška za 4 USB 5Gbps porta |
| USB-C | 2 x podrška za 2 USB 20Gbps porta |
| Audio | |
| Broj kanala | 7.1 |
| Model | Realtek ALC4080 Codec |
| Napomena | Premium audio capacitors, Audio Cover, SupremeFX Shielding, Savitech SV3H712 AMP, Podrška za S/PDIF output, Gold-plated jacks, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 32-Bit/384 kHz playback, High quality 120dB SNR stereo playback output and 110dB SNR recording input, Impedance sense for front and rear headphone outputs |
| Osnovne karakteristike | |
| Čipset | AMD X870E |
| Procesorsko ležište (socket) | AMD AM5 |
| Slotovi | |
| PCI Express x16 slot | 2x PCI Express 5.0 (x16 ili x8/x8 ili x8/x4/x4 modovi) |
| PCI Express x4 slot | 1x PCI Express 4.0 |
| PCI slot | 4, 2 |
| PCI Express x1 slot | 1x PCI Express 3.0 |
| Skladišni interfejs | |
| SATA priključci | SATA III 6Gbps |
| RAID | RAID 0, RAID 1, RAID 10, RAID 5 |
| SATA priključci (ukupno) | 4 |
| Broj M.2 slotova | 5 |
| Podržani M.2 formati | 3x 2242 / 2260 / 2280 (podrška za PCIe 5.0 x4 mod), 2x 2230 / 2242 / 2260 / 2280 / 22110 (podrška za PCIe 4.0 x4 mod) |
| Reklamacioni period | |
| Reklamacioni period | 36 meseci |
| Zemlja porekla | |
| Zemlja porekla | Kina |
